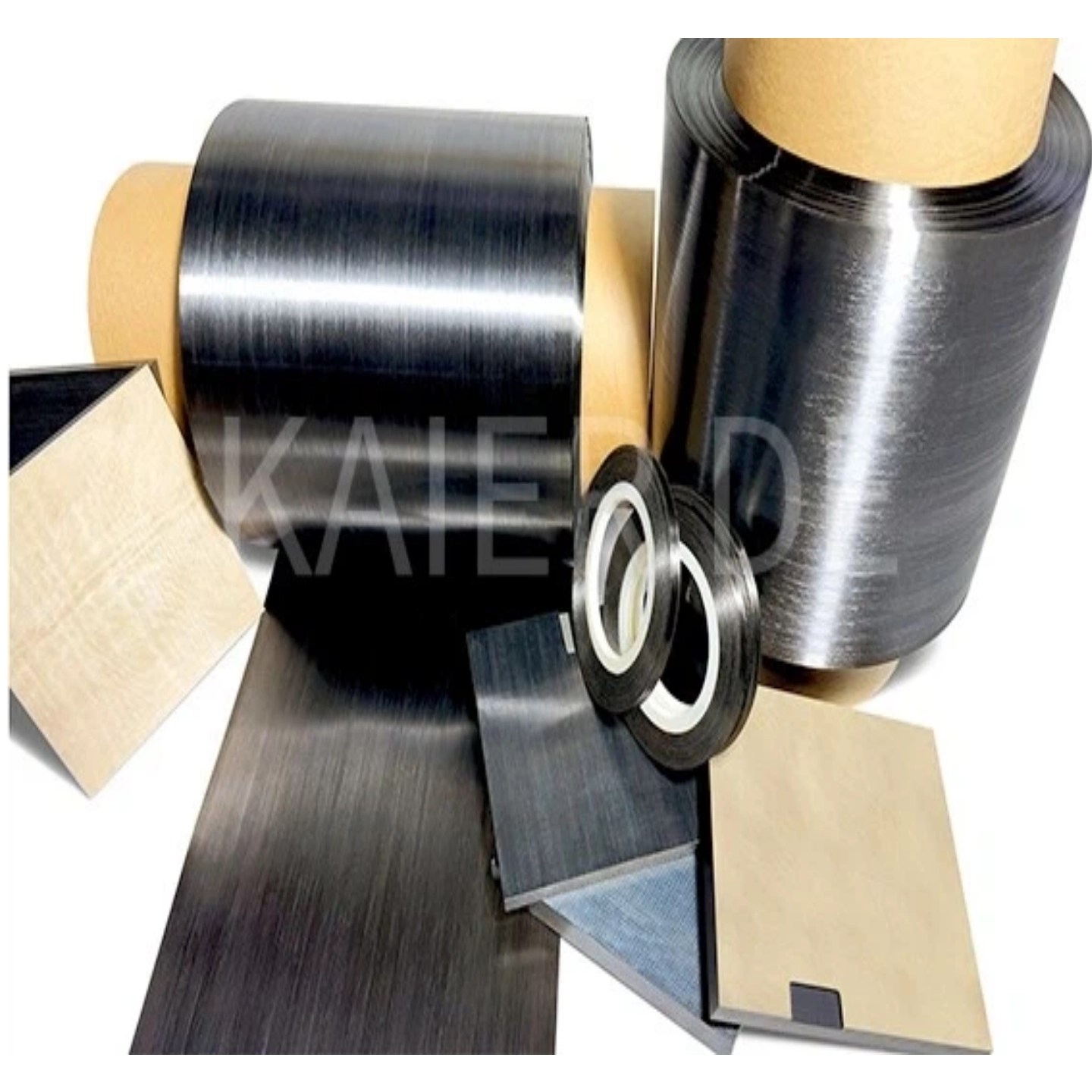

Product description

We routinely produce T700-T800-M40 Carbon Fiber Unidirectional Prepreg Tape. Of course, we can also customize products from 15-200GSM, according to customer’s requirements.

Benefits：

• Extremely high specific strength and specific modulus: Achieve the maximum mechanical properties in the fiber direction

• High design flexibility: Engineers can precisely design the placement angle of each layer of fibers (such as 0°, 45°, 90°, etc.) based on the structural force direction, like a “steel tailor”, to achieve the optimal distribution of materials and the maximum weight reduction effect

• Excellent surface quality and consistency: Suitable for manufacturing precision components with extremely high requirements for surface smoothness and internal quality.

Specifications：

• Tow Size: 12K T700-T800-M40

• Resin content: 24%-45%

• Width:3mm≤350mm

• Length: Customized

• Weight: 26-299GSM

• Thickness: 0.02-0.2mm

• Tensile strength (0°): 4400-5880MPa

• Tensile modulus (0°): 230-377GPa

• Compression strength (0°): >590MPa

• Interlaminar shear strength (0°/90°): >1879MPa

Carbon Fiber Unidirectional Prepreg Tape Application:

• Aerospace and Aviation

  Satellite and spacecraft structure: Carbon Fiber Unidirectional Prepreg Tape supports, solar panel substrates, antenna reflector surfaces (requiring high rigidity and low thermal expansion).
  Aircraft components: wing skins, flaps, rudders, helicopter rotors, unmanned aircraft bodies (for achieving maximum weight reduction)

• High-end sports equipment
  Top-level competition bicycles: Frame, front fork, wheel hub (aiming for the ultimate lightness and rigidity).
  F1 racing cars and high-end sports cars: monocoque body, suspension components, steering wheel.
  High-performance rackets and clubs: Tennis rackets, golf club shafts (precisely controlling the point of force-induced bending)

• Industry and Precision Equipment
  Robot mechanical arm: Requires light weight, high rigidity and fast response.
  Precision instrument beams/rods: Three-coordinate measuring machine, optical platform support structure (high rigidity, low creep).
  Wind turbine blade: The main beam cap at the critical stressed area (providing the main bending resistance stiffness)

• Medical equipment

  High-end medical bed boards, prosthetics, exoskeleton robots: They require high strength while also ensuring lightness and being able to pass X-ray tests

Service:

• • Samples.

  • Small batch trial orders can be accepted in the early stage.

  • Customized specification under small MOQ.

  • Cost accounting and stable supply capability.
